Powermatic

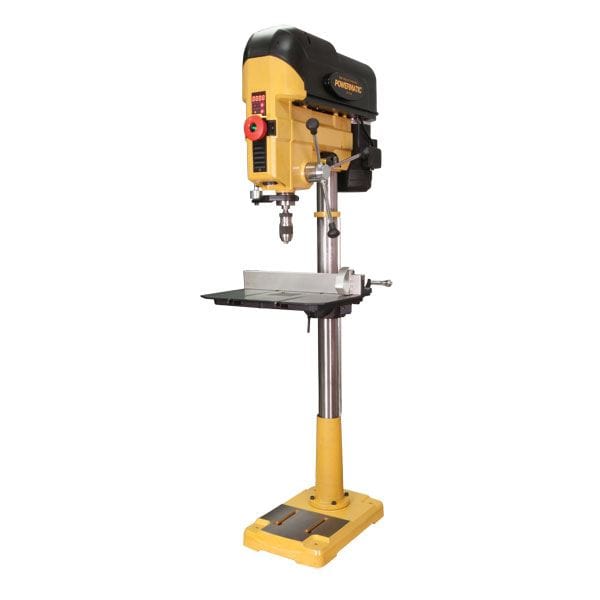

18" Variable Speed Drill Press - 1 HP 1 Ph 115/230V - PM2800B
Item #855941
Model PM9-1792800B
Regular price
$
1,999
.
99
Sale price
$
1,999
.
99
Was
$1,999.99
Save $0.00 (0% off)
Unit price
per
Powermatic
18" Variable Speed Drill Press - 1 HP 1 Ph 115/230V - PM2800B
Item #855941
Model PM9-1792800B
Regular price
$
1,999
.
99
Sale price
$
1,999
.
99
Was
$1,999.99
Save $0.00 (0% off)
Unit price
per
The PM2800B with 5/8" Keyed Chuck brings simplicity to your shop. An ease of use that is truly unique. A level of mechanical elegance that you'll only find in a Powermatic. As. . .
View More Details
Items you may need
-

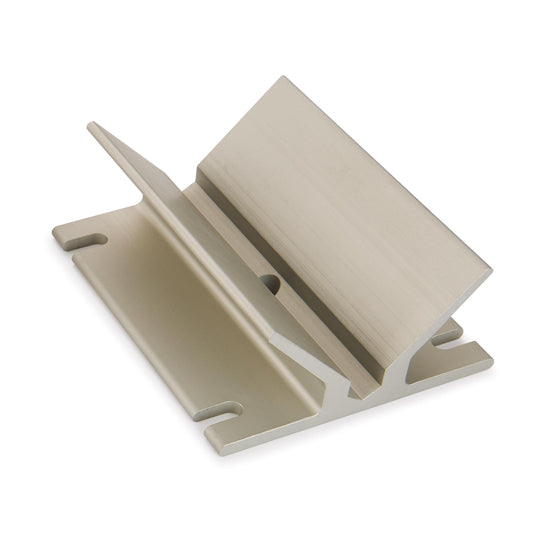

Drill Press Table V-Block
Regular price $ 42 . 49Sale price $ 42 . 49 WasUnit price per$49.99Save $7.50 (15% off)
-

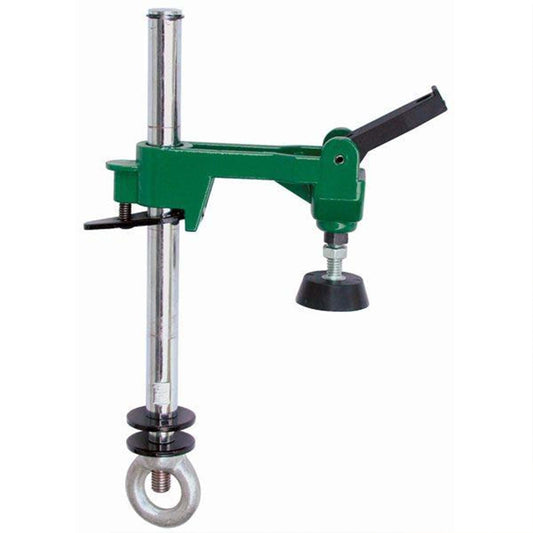

Quick Set Drill Press Hold Down
Regular price $ 23 . 79Sale price $ 23 . 79 WasUnit price per$27.99Save $4.20 (15% off)
Details
The PM2800B with 5/8" Keyed Chuck brings simplicity to your shop. An ease of use that is truly unique. A level of mechanical elegance that you'll only find in a Powermatic. As with every product Powermatic builds, the PM2800B pushes the limits of design, innovation, and durability.
Features
Specifications
Features
- Mechanical variable speed allows for full range of speed with no belt changes
- 6" of quill travel with one revolution of the handle
- Fence system adjustable for a perfect 90 degree relationship to the table, for rapid alignment of stock
- Adjustable material stop makes repetitive actions accurate and quick
- A digital RPM readout allows user to optimize the spindle speed to the application
- Laser guides provide an accurate indication for tool point
- 5/8" Keyed Chuck
- Reversible handles can be mounted on either side of the machine for more comfortable working of the quill
- Two independent LED worklights eliminates shadows
- Work table can be rotated to a full 90 degree position
- Replaceable square table insert with leveling screws make it flush with the top of the table
- Oversize cast iron base for added stability
- Safety key prevents accidental starting
Specifications
- Motor: 1HP, 1Ph, 115/230V, Prewired 115V, 15/7.5 Amps
- Base Size: 13-3/8” x 20”
- Chuck Distance to Base: 43-13/32”
- Chuck Distance to Table: 24-1/2”
- Chuck Size: 5/8”
- Column Diameter: 3-1/8”
- Drilling Capacity: 5/8”
- Fence Size: 19-13/16” L x 2-11/16” H
- Number of Spindle Speeds : Variable
- Spindle Distance to Base: 46-1/4”
- Spindle Distance to Table (Max.): 27-3/8”
- Spindle Speed Range (RPM) : 250-3000
- Spindle Taper : MT-2/JT-3
- Spindle Travel: 6”
- Swing: 18”
- Table Size (L x W): 20” x 14”
- Table Tilt (Deg.) : 0 to 90
- Net Weight: 266 lbs
