Sawstop

5HP 3PH 480V Industrial Cabinet Saw with 36" Industrial T-Glide Fence System

Item #420942 Model ICS53480-36
$ 5,489 00
$ 5,489 00 Was $5,489.00
This item has an additional shipping charge
1 2

Sawstop

5HP 3PH 480V Industrial Cabinet Saw with 36" Industrial T-Glide Fence System

Item #420942 Model ICS53480-36
$ 5,489 00
$ 5,489 00 Was $5,489.00
This item has an additional shipping charge
The SawStop® Industrial Cabinet Saw is the definition of industrial grade. It is the heaviest, most powerful and highest quality 10" cabinet saw avail. . . View More Details

Enjoy Extended Coverage with a Woodcraft Protection Plan

Ships from Manufacturer Shipping Info

Purchase Note: This machine requires 3-phase power. Most residential power is single or 1-phase. Verify your power requirements before ordering.

Items you may need

  • Saw Gauge with Dial Indicator

    $ 99 99
    $ 99 99 Was $99.99
    Saw Gauge with Dial Indicator

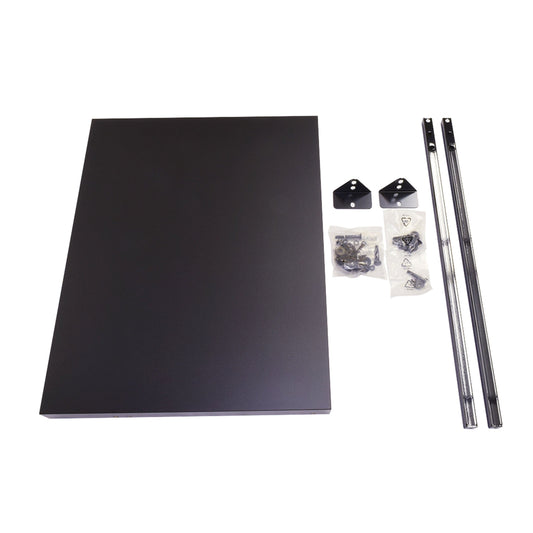

  • Sawstop Industrial Series 36" Extension Table

    $ 160 00
    $ 160 00 Was $160.00
    Sawstop Industrial Series 36" Extension Table alt 0

  • 40T Combination Blade

    $ 49 00
    $ 49 00 Was $49.00
    40T Combination Blade alt 0

  • Industrial Cabinet Saw Mobile Base

    $ 449 00
    $ 449 00 Was $449.00
    Industrial Cabinet Saw Mobile Base alt 0

  • Titanium Series 80T Combination Blade

    $ 119 00
    $ 119 00 Was $119.00
    Titanium Series 80T Combination Blade alt 0

  • Large Sliding Table

    $ 1,739 00
    $ 1,739 00 Was $1,739.00
    Large Sliding Table alt 0

  • ICS 30" In-Line Router Table Kit

    $ 925 00
    $ 925 00 Was $925.00
    ICS 30" In-Line Router Table Kit alt 0

  • TS2000 Super Combo Saw Blade - 10" x 5/8" Bore x 40T - AR - Thin Kerf

    $ 159 99
    $ 159 99 Was $159.99
    TS2000 Super Combo Saw Blade - 10" x 5/8" Bore x 40T - AR - Thin Kerf

  • Heavy Duty TS2000 Super Rip Saw Blade - 10" x 5/8" Bore x 24T - STR - Full Kerf

    $ 139 99
    $ 139 99 Was $139.99
    Heavy Duty TS2000 Super Rip Saw Blade - 10" x 5/8" Bore x 24T - STR - Full Kerf

  • Box & Finger Joint Blade Set (1/4" - 3/8") - 2 Piece - 8" x 5/8" Bore x 30T

    $ 169 99
    $ 169 99 Was $169.99
    Box & Finger Joint Blade Set (1/4" - 3/8") - 2 Piece - 8" x 5/8" Bore x 30T

  • TS2000 Super Combo Saw Blade - 10" x 5/8" Bore x 40T - AR - Full Kerf

    $ 149 99
    $ 149 99 Was $149.99
    TS2000 Super Combo Saw Blade - 10" x 5/8" Bore x 40T - AR - Full Kerf

  • TS2000 Flat Top Box Joint Blade - 10" x 5/8" Bore x 40T - STR - Full Kerf

    $ 149 99
    $ 149 99 Was $149.99
    TS2000 Flat Top Box Joint Blade - 10" x 5/8" Bore x 40T - STR - Full Kerf

  • TS2000 Ultra Combo Saw Blade - 10" x 5/8" Bore x 48T - ATB - Full Kerf

    $ 159 99
    $ 159 99 Was $159.99
    TS2000 Ultra Combo Saw Blade - 10" x 5/8" Bore x 48T - ATB - Full Kerf

  • Melacrafter Saw Blade - 10" x 5/8" Bore x 80T - ATB - Full Kerf

    $ 149 99
    $ 149 99 Was $149.99
    Melacrafter Saw Blade - 10" x 5/8" Bore x 80T - ATB - Full Kerf

  • Align-A-Saw Plate

    $ 159 99
    $ 159 99 Was $159.99
    Align-A-Saw Plate

  • Spline Jig

    $ 159 99
    $ 159 99 Was $159.99
    Spline Jig

  • Align-A-Saw Gauge & Base

    $ 89 99
    $ 89 99 Was $89.99
    Align-A-Saw Gauge & Base

  • TS2000 Super Combo Saw Blade - 10" x 5/8" Bore x 30T - AR - Full Kerf

    $ 129 99
    $ 129 99 Was $129.99
    TS2000 Super Combo Saw Blade - 10" x 5/8" Bore x 30T - AR - Full Kerf

  • Thin Rip Guide

    $ 169 99
    $ 169 99 Was $169.99
    Thin Rip Guide

Details

The SawStop® Industrial Cabinet Saw is the definition of industrial grade. It is the heaviest, most powerful and highest quality 10" cabinet saw available. The 5 HP, 3 PH, 480V configuration with a 36" Industrial T-Glide Fence Assembly offers the durability, versatility, and the peace of mind only SawStop’s patented safety system can provide.

Specifications
  • 36" Rip Fence with T-Glide Fence assembly
  • Cast Iron Table: 24" W x 30" D
  • Motor: 5HP - 3 PH Electric, 480V, 5.8A
  • Extension Wings: 10" W x 30" D each
  • Extension Table: 24" W x 30" D
  • Cabinet footprint: 20' W x 25" D
  • Weight: 635 lbs. Fence included
  • Blade size: 5/8" arbor 10" Diameter
  • Left Tilt
  • Blade kerf: 0.118" (3 mm)
  • Blade Plate Thickness: 0.078" (2 mm)
  • Max depth of cut: 2-1/4"
  • Max rip right of blade: 36-1/2"
  • Max rip left of blade: 12-1/2"
  • Dado Diameter: 8" and requires separate brake cartridge and insert
  • Dado max width: 13/16"
Includes
  • Cast Iron Extension Wings
  • miter Gauge
  • Dust Collection Blade Guard
  • Riving Knife
  • Blade Wrenches - 2 each
  • Push Stick
  • 10" Blade
  • Standard Brake Cartridge
  • 3 mm Hex Key
  • 5 mm Hex Key
  • 8 mm Hex Key
  • Hardware Packs
  • Blade Spacing adjustment tool
  • Owner's Manual
5 HP - 3PH 480 Volt requires special electrical services

Shipping / Billing Information

This product ships direct from the manufacturer:

  • Your order will ship in approximately 5 business days.
  • This product is considered special order. Your account will be charged when you place your order.
  • Express or overnight shipping is not available for this product.
  • Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.

Inspect all freight shipments at time of delivery. If damage or missing pieces, are suspected, please note on driver paperwork.

Return Information

SawStop does not accept returns. If your shipment was damaged, please refuse shipment and call SawStop's customer service department at 503-595-2665.

Warranty Information

SawStop warrants that their saws are free from defects in materials and workmanship for a period of two years from the purchase date, and covers their motors for a period of 5 years. If you have a warranty question, please contact SawStop customer service @ 503-582-9934.
