Sawstop

7.5HP 3PH 230V Industrial Cabinet Saw with 52" Industrial T-Glide Fence System

Item #420945 Model ICS73230-52
$ 6,239 00
$ 6,239 00 Was $6,239.00
This item has an additional shipping charge
1 2

Sawstop

7.5HP 3PH 230V Industrial Cabinet Saw with 52" Industrial T-Glide Fence System

Item #420945 Model ICS73230-52
$ 6,239 00
$ 6,239 00 Was $6,239.00
This item has an additional shipping charge
The SawStop® Industrial Cabinet Saw is the definition of industrial grade. It is the heaviest, most powerful and highest quality 10" cabinet saw avail. . . View More Details

Enjoy Extended Coverage with a Woodcraft Protection Plan

Ships from Manufacturer Shipping Info

Purchase Note: This machine requires 3-phase power.  Most residential power is single or 1-phase.  Verify your power requirements before ordering.

Items you may need

  • Saw Gauge with Dial Indicator

    $ 99 99
    $ 99 99 Was $99.99
    Saw Gauge with Dial Indicator

  • Standard Lock Down Insert

    $ 69 00
    $ 69 00 Was $69.00
    Standard Lock Down Insert alt 0

  • Industrial Cabinet Saw Mobile Base

    $ 449 00
    $ 449 00 Was $449.00
    Industrial Cabinet Saw Mobile Base alt 0

  • Floating Overarm Dust Collection Guard

    $ 579 00
    $ 579 00 Was $579.00
    Floating Overarm Dust Collection Guard alt 0

  • Folding Outfeed Table

    $ 449 00
    $ 449 00 Was $449.00
    Folding Outfeed Table alt 0

  • TS2000 Super Combo Saw Blade - 10" x 5/8" Bore x 30T - AR - Full Kerf

    $ 129 99
    $ 129 99 Was $129.99
    TS2000 Super Combo Saw Blade - 10" x 5/8" Bore x 30T - AR - Full Kerf

  • Spline Jig

    $ 159 99
    $ 159 99 Was $159.99
    Spline Jig

  • Align-A-Saw Gauge & Base

    $ 89 99
    $ 89 99 Was $89.99
    Align-A-Saw Gauge & Base

  • Align-A-Saw Plate

    $ 159 99
    $ 159 99 Was $159.99
    Align-A-Saw Plate

  • Super Stack Dado Set - 8" x 5/8" Bore x 24T

    $ 275 99
    $ 275 99 Was $275.99
    Super Stack Dado Set - 8" x 5/8" Bore x 24T

  • $ 19 99
    $ 19 99 Was Liquid error (snippets/price line 85): comparison of String with 1999 failed

  • TS2000 Flat Top Box Joint Blade - 10" x 5/8" Bore x 40T - STR - Full Kerf

    $ 149 99
    $ 149 99 Was $149.99
    TS2000 Flat Top Box Joint Blade - 10" x 5/8" Bore x 40T - STR - Full Kerf

  • TS2000 Super Combo Saw Blade - 10" x 5/8" Bore x 40T - AR - Full Kerf

    $ 149 99
    $ 149 99 Was $149.99
    TS2000 Super Combo Saw Blade - 10" x 5/8" Bore x 40T - AR - Full Kerf

  • Melacrafter Saw Blade - 10" x 5/8" Bore x 80T - ATB - Full Kerf

    $ 149 99
    $ 149 99 Was $149.99
    Melacrafter Saw Blade - 10" x 5/8" Bore x 80T - ATB - Full Kerf

  • TS2000 Ultra Combo Saw Blade - 10" x 5/8" Bore x 48T - ATB - Full Kerf

    $ 159 99
    $ 159 99 Was $159.99
    TS2000 Ultra Combo Saw Blade - 10" x 5/8" Bore x 48T - ATB - Full Kerf

  • TS2000 Super Combo Saw Blade - 10" x 5/8" Bore x 40T - AR - Thin Kerf

    $ 159 99
    $ 159 99 Was $159.99
    TS2000 Super Combo Saw Blade - 10" x 5/8" Bore x 40T - AR - Thin Kerf

  • Heavy Duty TS2000 Super Rip Saw Blade - 10" x 5/8" Bore x 24T - STR - Full Kerf

    $ 139 99
    $ 139 99 Was $139.99
    Heavy Duty TS2000 Super Rip Saw Blade - 10" x 5/8" Bore x 24T - STR - Full Kerf

  • Dado Nut for SawStop Table Saws

    $ 44 99
    $ 44 99 Was $44.99
    Dado Nut for SawStop Table Saws

  • Thin Rip Guide

    $ 139 99
    $ 139 99 Was $169.99 Save $30.00 (17% off)
    Thin Rip Guide

Details

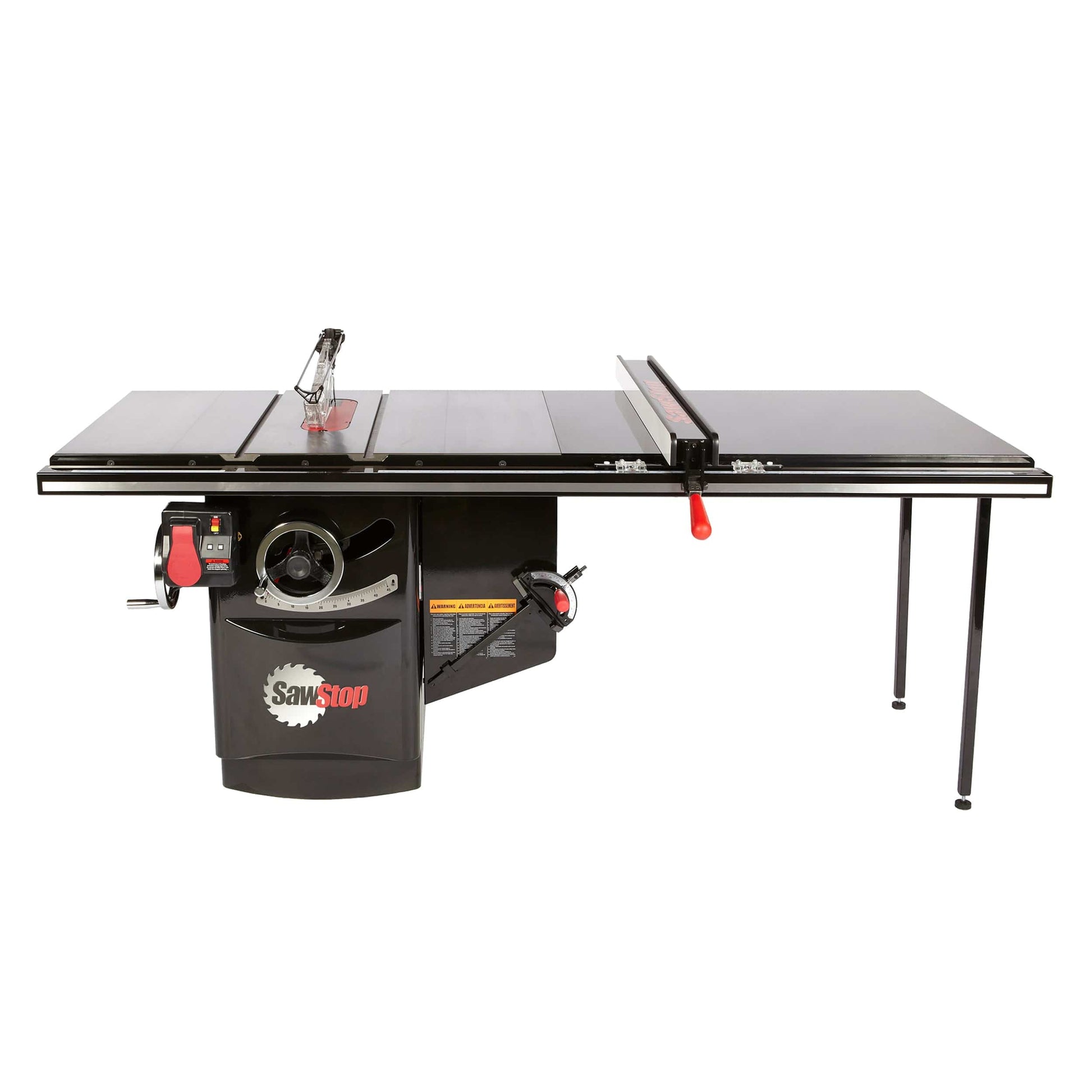

The SawStop® Industrial Cabinet Saw is the definition of industrial grade. It is the heaviest, most powerful and highest quality 10" cabinet saw available. The 7.5 HP, 3 PH, 230V configuration with a 52" Industrial T-Glide Fence Assembly offers the durability, versatility, and the peace of mind only SawStop's patented safety system can provide.
Features
  • SawStop’s patented safety system
  • Riving knife reduces the risk of kickback
  • Tool-free quick-change blade guard mount
  • Diagnostic system ensures the saw is ready to respond
  • Dust-Collection Blade Guard
  • 52" Industrial T-Glide Fence System

Specifications
  • Motor: 7.5 HP, 3-phase, 230V 60 HZ
  • Overall saw dimensions: 85-1/4" W x 36-1/2" D x 34" H
  • Cabinet footprint: 20" x 25"
  • Cast-iron table: 24" W x 30" D
  • Cast-iron table size with extension wings: 44" W x 30" D
  • Blade: 60-tooth, professional grade, 5/8" arbor
  • Blade diameter: 10"
  • Blade tilt: left
  • Blade kerf: 0.118" (3mm)
  • Blade plate thickness: 0.078"
  • Max. depth of cut, blade at 0º: 3-1/8"
  • Max. depth of cut, blade at 45º: 2-1/4"
  • Max. rip, left of blade: 12-1/2"
  • Dado diameter: 8" (requires a separate brake cartridge and table insert)
  • Dado max. width: 13/16"
  • Arbor diameter at blade: 5/8"
  • Table in front of blade (max. elevation): 11"
  • Table behind blade (max. elevation): 9-3/4"
  • Table flatness measured diagonally: 0.010" maximum gap
  • Miter slots: T-shaped, 3/4" at top, 1" at bottom, 3/8" deep
  • Dust-collection port diameter: 4"
  • Riving knife/splitter thickness: 0.090" (2.3mm)
  • Insert: zero clearance, phenolic core, melamine surfaces
  • Belts: 2 V-ribbed belts
  • Weight: 685 lbs.

Shipping / Billing Information

This product ships direct from the manufacturer:

  • Your order will ship in approximately 5 business days.
  • This product is considered special order. Your account will be charged when you place your order.
  • Express or overnight shipping is not available for this product.
  • Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.

Inspect all freight shipments at time of delivery. If damage or missing pieces, are suspected, please note on driver paperwork.

Return Information

SawStop does not accept returns. If your shipment was damaged, please refuse shipment and call SawStop's customer service department at 503-595-2665.

Warranty Information

SawStop warrants that their saws are free from defects in materials and workmanship for a period of two years from the purchase date, and covers their motors for a period of 5 years. If you have a warranty question, please contact SawStop customer service @ 503-582-9934.
